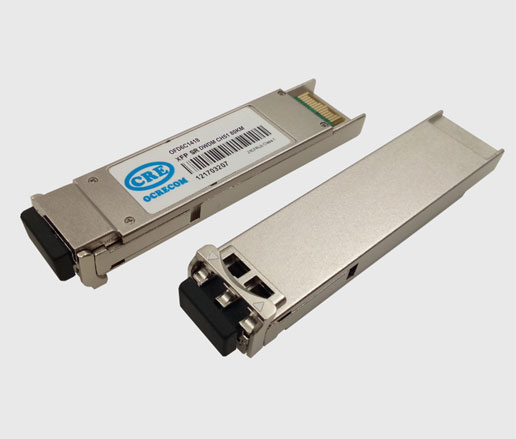

10G XFP DWDM

OCRECOM’s DWDM XFP transceivers are available in channels defined in the ITU Grid (100 GHz spacing), from Channel 19 to Channel 61, or ITU Grid (50Ghz spacing), from channel 200 to 592ch. OCRECOM currently offers DWDM XFP optics for 10G networking at ranges between 40km, 80km. DWDM stands for Dense Wavelength-Division Multiplexing. It is a technology which multiplexes a number of different “colored” optical signals together. These systems are popular with telecommunications companies because they allow them to expand the capacity of the network without laying more fiber. More recently, smaller ISP’s have been using this equipment as well; they will rent or buy “dark fiber” and by utilizing DWDM they can put more traffic over the same line. OCRECOM has industry fastest lead time on DWDM 10G transceivers in different for factors.
  • Features
  • Application
  • Model Ordering Information

    u  Supports 8.0Gb/s to 11.1Gb/s bit rates

    u  Hot-pluggable XFP footprint, Built-in digital diagnos

    u  Maximum link length of 80km with SMF

    u  100GHz ITU, C Band DWDM Cooled EML laser and APD photodiode

    u  XFP MSA package with duplex LC connector

    u  No reference clock required

    u  Single +3.3V power supply

    u  Power dissipation <3.5W

    u  Compatible with RoHS

    u  Temperature range0 to +70°C

    u  10G DWDM Networks

    u  SONET OC-192&SDH STM-64 at 9.953Gbps

    u  10G Ethernet Applications

    u  10G Fiber Channel Applications

    u  10GE over G.709 at 11.09Gbps

    u  OC192 over FEC at 10.709Gbps

    u  Other optical links, up to 11.1Gbps

    PN

    Description

    OFD6xx418

    XFP DWDM 80KM  0~70

    Note:

    For xx:=ITU Channel Product  code:

    ITU Channel

    Product Code

    Frequency(THz)

    Wavelength

    ITU Channel

    Product Code

    Frequency(THz)

    Wavelength

    17

    191.7

    1563.86

    40

    194.0

    1545.32

    18

    191.8

    1563.04

    41

    194.1

    1544.52

    19

    191.9

    1562.23

    42

    194.2

    1543.73

    20

    192.0

    1561.41

    43

    194.3

    1542.93

    21

    192.1

    1560.60

    44

    194.4

    1542.14

    22

    192.2

    1559.79

    45

    194.5

    1541.34

    23

    192.3

    1558.98

    46

    194.6

    1540.55

    24

    192.4

    1558.17

    47

    194.7

    1539.76

    25

    192.5

    1557.36

    48

    194.8

    1538.97

    26

    192.6

    1556.55

    49

    194.9

    1538.19

    27

    192.7

    1555.74

    50

    195.0

    1537.40

    28

    192.8

    1554.94

    51

    195.1

    1536.61

    29

    192.9

    1554.13

    52

    195.2

    1535.82

    30

    193.0

    1553.32

    53

    195.3

    1535.04

    31

    193.1

    1552.52

    54

    195.4

    1534.25

    32

    193.2

    1551.72

    55

    195.5

    1533.46

    33

    193.3

    1550.92

    56

    195.6

    1532.68

    34

    193.4

    1550.11

    57

    195.7

    1531.89

    35

    193.5

    1549.32

    58

    195.8

    1531.12

    36

    193.6

    1548.51

    59

    195.9

    1530.33

    37

    193.7

    1547.71

    60

    196.0

    1529.55

    38

    193.8

    1546.92

    61

    196.1

    1528.77

    39

    193.9

    1546.12

    -

    -

    -
